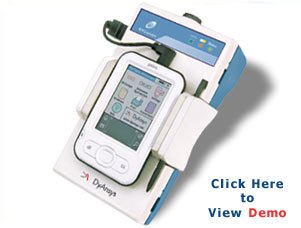

| The Portable ANSiscope is a safe and non-invasive |
| monitoring device for the Autonomic Nervous System. It is |
| battery operated, operates in real time and is ideal for |
| operation in a physician's practice or in the field. |
|
|
|
|
Measurement
|
|
|
The initial ANSindex reading is displayed after 60 R-R |
| |
intervals (approx 1 minute) |
|
|
Subsequent readings are taken with every heartbeat |
|
|
The display is updated with every heartbeat |
|
|
|
|
Data acquisition
|
|
|
Standard leads acquired: I, II, III, aVR, aVL, aVF, V1-6 |
|
|
Lead and gain selection: User can dynamically select lead/gain |
| |
during recording |
|
|
Digital sampling rate: 1666 samples/sec (0.6ms samples) |
|
|
Sampling resolution: 16 bit, bipolar |
|
|
Frequency response: 0.5 Hz to 40 Hz |
|
|
Filters |
| |
|
•
|
High Pass: 0.5 Hz cutoff |
|
•
|
Low Pass: 40 Hz cutoff |
|
•
|
Notch filter: 50Hz, 60Hz for power interference |
|
|
|
Input dynamic range: 5 mV |
|
|
Common mode rejection: >100dB |
|
|
DC offset capability: 300 mV DC |
|
|
Input lead impedance: >20M ohm at DC |
|
|
|
|
Patient information
|
|
|
Input at the start of the measurement |
|
|
|
|
Treatment notes
|
|
|
Can be appended during the measurement |
|
|
|
|
Help facility
|
|
|
Is available at any time from the display |
|
|
|
|
Data display
|
|
|
Choice of colour or monochrome displays |
|
|
|
|
ANS monitor
|
The ECG signals are displayed in real-time on the LCD Screen of the Portable ANSiscope
 The display also shows
ECG lead selection
Heart rate
The sympathovagal balANS (from –50 to +50)
Both, sympathetic and parasympathetic ANSi indices (from –50 to +50)
|
|
|
|
Measurement of autonomic dysfunction
|
|
The display shows
The static balANS™
The percentage of autonomic dysfunction
The diabetic autonomic neuropathy (DAN/CAN) group
• Healthy • Early • Late • Advanced • Most Advanced
|
|
|
|
Data storage capability
|
|
|
USB memory keys (Thumb drives) can be used for data |
|
|
storage/backup |
|
|
Also supports SCSI compatible USB mass storage devices |
|
|
Data can be exported to a PC via a USB memory key |
|
|
|
|
Printing capability
|
|
|
Prints on A4/letter size papers providing an inexpensive |
| |
printing solution |
|
|
Works with HP C 5368 printer |
|
|
|
|
Regulatory compliance
|
IEC 60601-1, IEC 60601-1-1, IEC 60601-1-2, IEC 60601-1-4, IEC 60601-2-27
|
|
FDA Approved
|
|
|
|
Patient safety
|
|
|
Patient leakage current: <10 A |
|
|
Classified as Class II - Type CF device as per IEC |
| |
requirements |
|
|
|
|
Product test and calibration
|
|
|
Auto calibration at startup |
|
|
Extended tests and calibration can be performed including |
| |
the ECG cable by connecting the ECG cables to calibration terminals provided in the product |
|
|
|
|
Power specifications
|
|
|
AC adapter input: 100-240V AC, 50/60 HZ |
|
|
AC adapter output: 12V DC @ 2amps Max |
|
|
Power consumption: <15W |
|
|
|
|
Physical specifications
|
|
|
Weight: <0.4 Kgs (including the battery) |
|
|
Dimensions: 175 x 95 x 112 (mm) |
|
|
|
|
Environmental specifications
|
|
|
Operating temperature: 0 to 45C |
|
|
Storage temperature: –20C to +65C |
|
|
Humidity: 10% to 95% |
|
|
Pressure: 700 -1060 millibars |
|
|
Protected from patient defibrillation |
|
|
|
|
Battery and charger
|
|
|
Battery pack type: NiMH rechargeable battery |
|
|
Battery voltage: 3.6 VDC |
|
|
Battery capacity: 2300 mAh |
|
|
Typical battery operational time on full charge: >7 hours |
| |
(without any peripherals connected) |
|
|
Typical battery charge time: 6 hours |
|
|
Auto shutdown time: 5 minutes |
|
|
|
|
Standard accessories
|
|
|
Print Tool, Silence Poster |
|
|
AC power adaptor with power cord |
|
|
Stylus and charger for display |
|
|
Cables |
| |
|
•
|
USB interface cable for display |
|
•
|
5 lead ECG cable |
|
•
|
Dyansys Disposable Surface electrodes |
|
|
|
Product user manual |
|
|
Quick reference guide |
|
| |
| Note : specifications subject to change without notice. |
|
|
