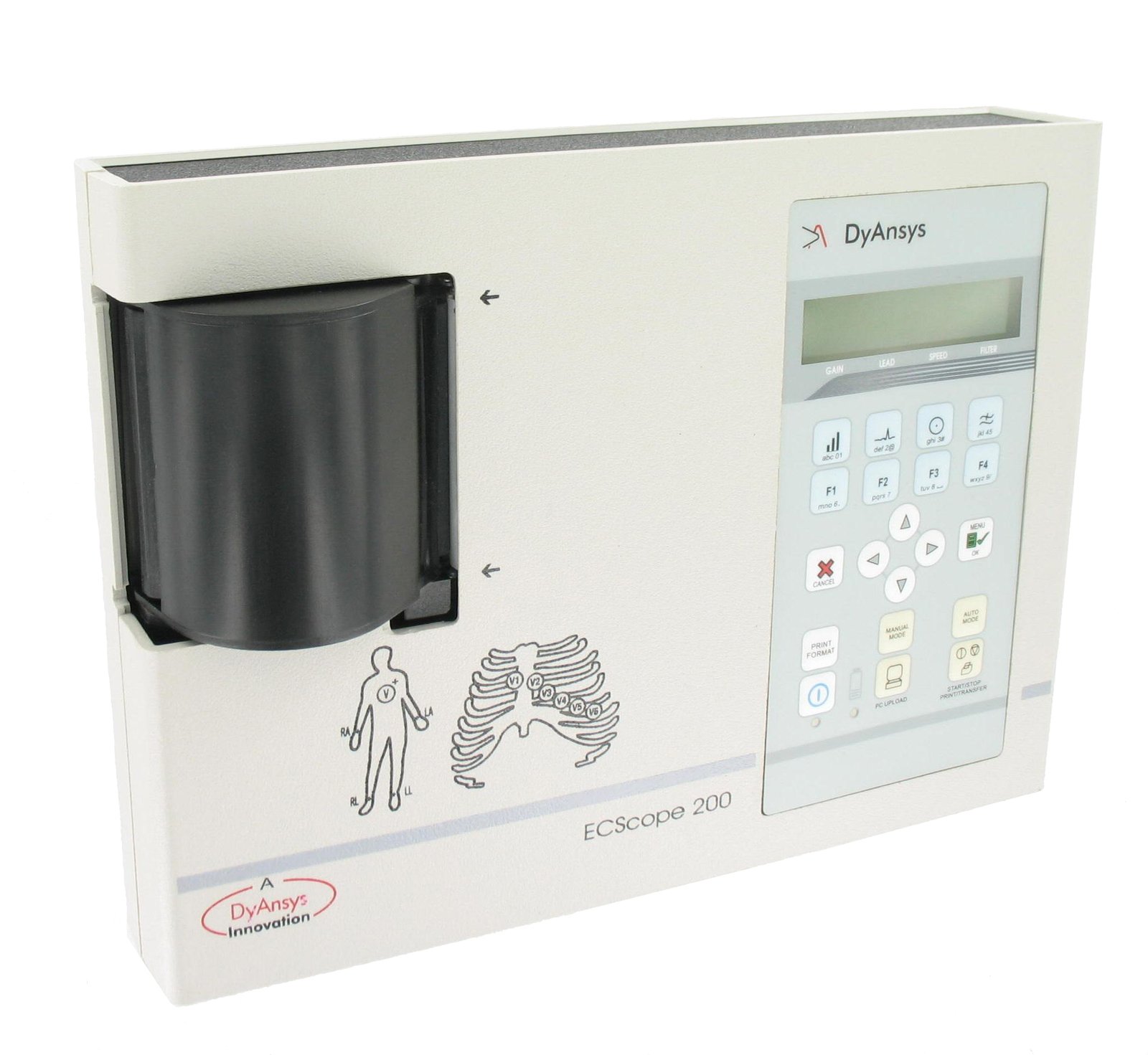

ECScope 200 is a 12 lead Portable ECG recording device. It acquires 12 (3 limb leads - L3 is derived from L1 & L2, 3 derived augmented leads and 6 chest leads) Lead ECG signal and records all leads simultaneously.

Data acquisition



Standard leads acquired:	I, II, III, aVR, aVL, aVF, V1 to V6
Lead and gain selection:	User can dynamically select lead/gain at the start of recording and thermal printing
Digital sampling rate:	1200 samples/sec
Sampling resolution:	12 bit, bipolar
Frequency response:	0.05 Hz to 150 Hz
Notch filter:	50Hz, 60Hz for power interference
Input dynamic range:	±5 mV
Common mode/technique rejection:	>100dB
DC offset capability:	300 mV DC
Input lead impedance:	>20M ohm at DC

Patient safety

Patient leakage current: <10 uA Classified as Class II - Type CF device as per IEC requirements

Physical specifications

Weight: <450 gms (including the battery) Dimensions: 225 x 165 x 40 (mm)

Environmental specifications

Operating temperature: 0°C to 45°C Storage Temperature: –20°C to +65°C Humidity: 10% to 95% Pressure: 700 -1060 millibars Protected from patient defibrillation

Regulatory compliance

IEC 60601-1, IEC 60601-1-1, IEC 60601-1-2, IEC 60601-1-4 and IEC 601-2-25

Accessories specifications

Data storage capability

USB key can be used for data storage/backup. Data report in an image format can be exported to a PC by connecting the product to the PC directly.

Printing capability

Direct printing using a compatible HP printer connected to the equipment. Printing using USB key with a standard printer connected to a PC. Thermal Printing through in-built 2inch thermal printer.

Battery specifications

Battery pack type: Lithium Ion Battery voltage 7.4 V DC Battery capacity: minimum 2500 mAh Typical battery operational: >7 hours Auto shutdown time: 7 minutes

Power specifications

AC adapter input: 100-240V AC, 50/60Hz AC adapter output: 12V DC @ 2amps Max Power Consumption: <15W

Standard accessories

10 lead ECG cable Product user manual
