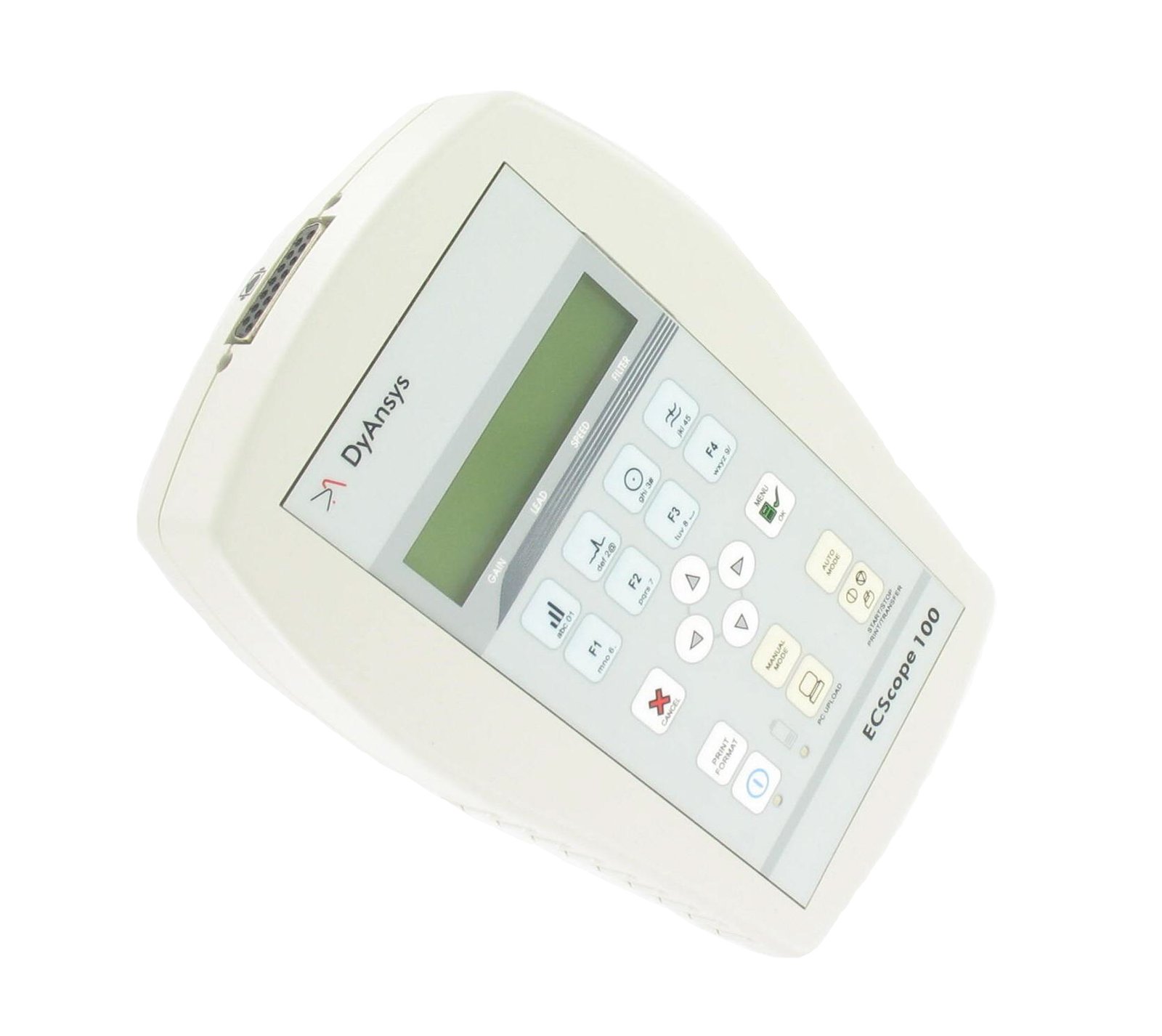

ECScope 100 is a 12 lead Portable ECG recording device. It acquires 12 (3 limb leads - L3 is derived from L1 & L2, 3 derived augmented leads and 6 chest leads) Lead ECG signal and records all leads simultaneously.

Data acquisition

Standard leads acquired:	I, II, III, aVR, aVL, aVF, V1 to V6
	12 Leads simultaneous (5 -12 mode)
Lead and gain selection:	User can dynamically select lead/gain at the start of recording
Digital sampling rate:	1200 samples/sec
Sampling resolution:	12 bit, bipolar
Frequency response:	0.05 Hz to 150 Hz
Notch filter:	50Hz, 60Hz for power interference
Input dynamic range:	±5 mV
Common mode/technique rejection:	>100dB
DC offset capability:	±300 mV DC
Input lead impedance:	>20M ohm at DC

Patient safety

Patient leakage current: <10 uA Classified as Class I - Type CF device as per IEC requirements

Physical specifications

Weight <450 gms (including the battery) A Dimensions 175 x 95 x 112 (mm)

Environmental specifications

Operating temperature 0°C to 45°C Storage Temperature –20°C to +65°C Humidity 10% to 95% Pressure 700 -1060 millibars Protected from patient defibrillation

Regulatory compliance

IEC 60601-1, IEC 60601-1-1, IEC 60601-1-2, IEC 60601-1-4 and IEC 601-2-25

Accessories specifications

Data storage capability

USB key can be used for data storage/backup Data report in an image format can be exported to a PC by connecting the product to the PC directly

Printing capability

Direct printing using a compatible HP printer connected to the equipment. Printing using USB key with a standard printer connected to a PC.

Battery specifications

Battery type AA battery (Re chargeable) Battery voltage 1.2 V DC, AA Size (4 numbers) Battery capacity minimum 2500 mAh Typical battery operational >7 hours Auto shutdown time 5 minutes

Standard accessories

Cables - 10 lead ECG cable Product user manual
